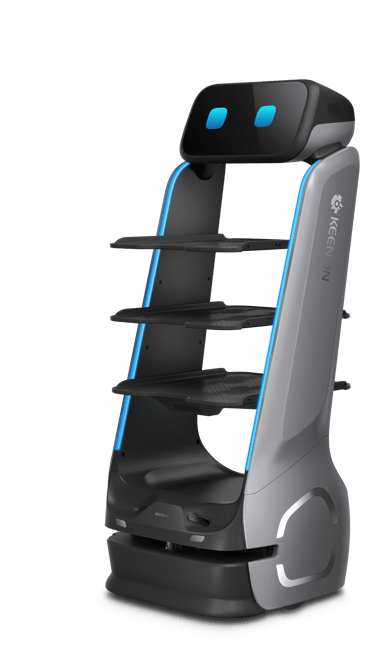

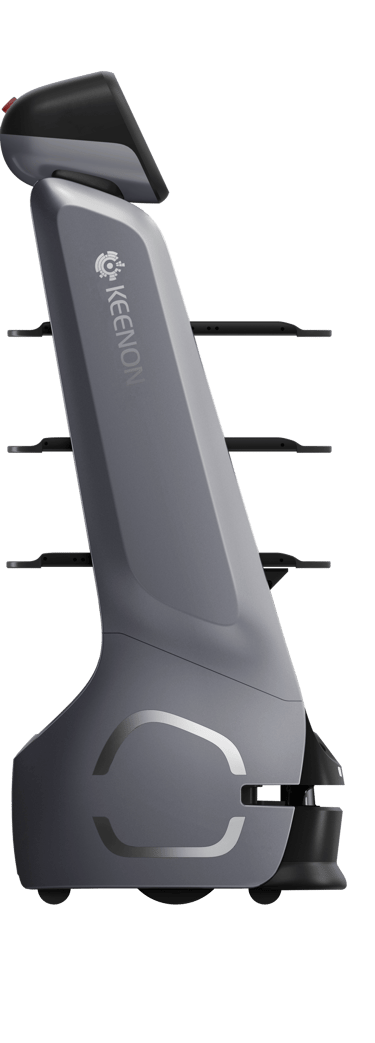

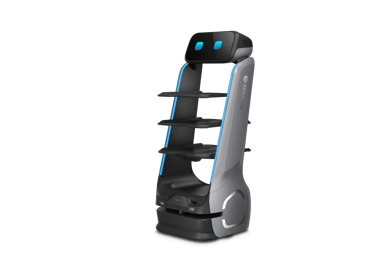

DINERBOT T9 Pro
Smart Multi-Tray Service Robot

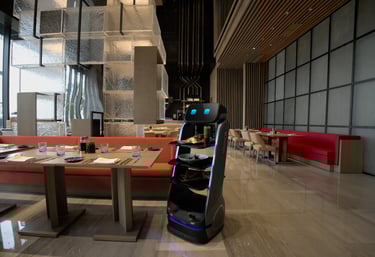

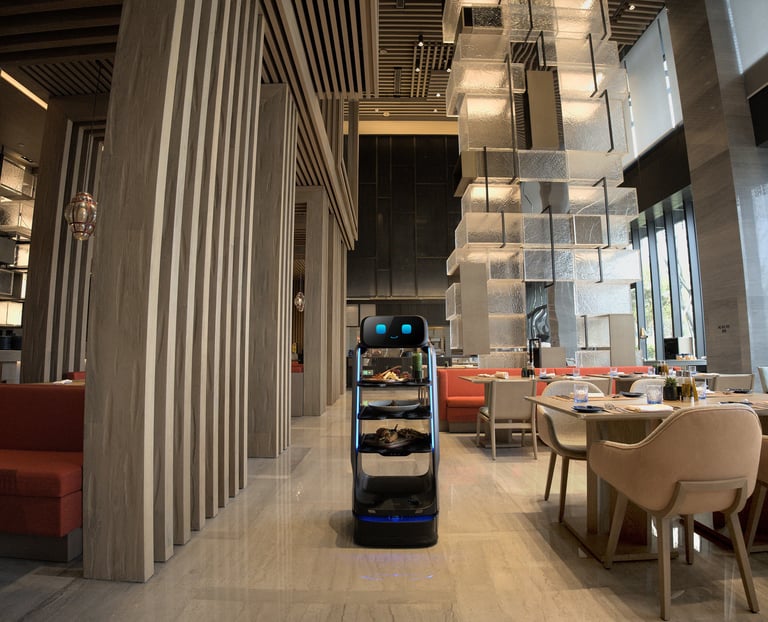

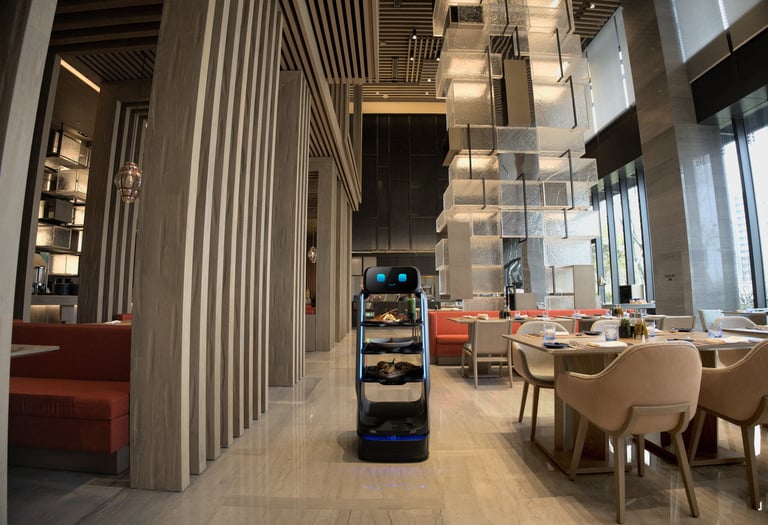

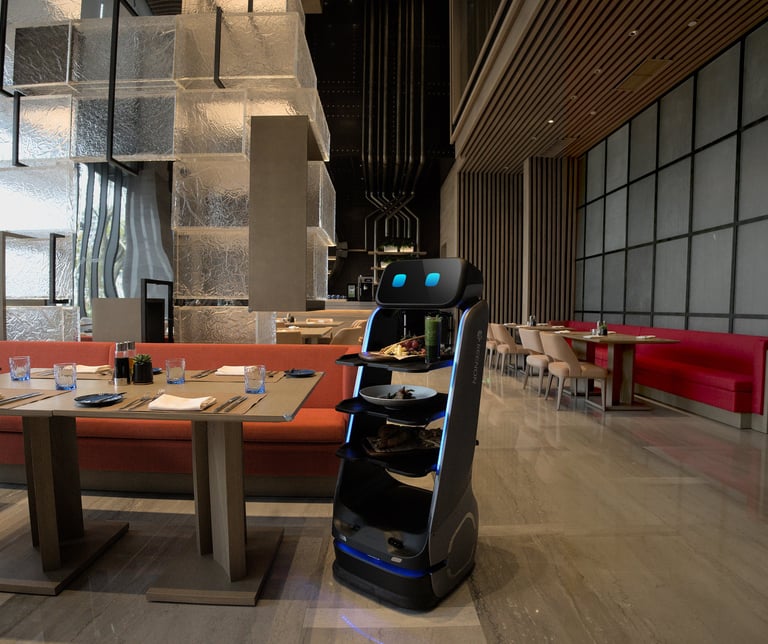

The Keenon DINERBOT T9 Pro is a high-capacity service robot designed primarily for busy restaurants and Cafés. With four trays carrying up to 40 kg, smart tray sensors that detect pickup, and dual displays for interactive engagement, it delivers food or items efficiently and with a friendly touch.

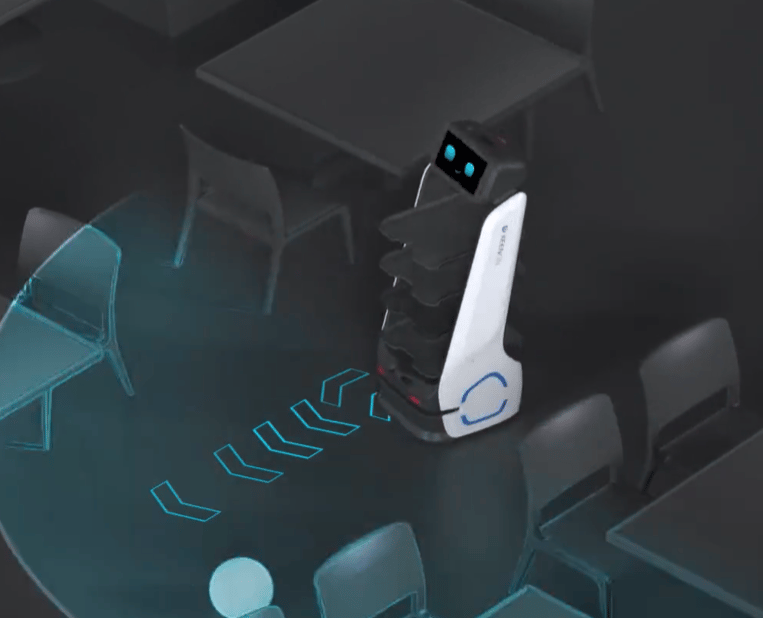

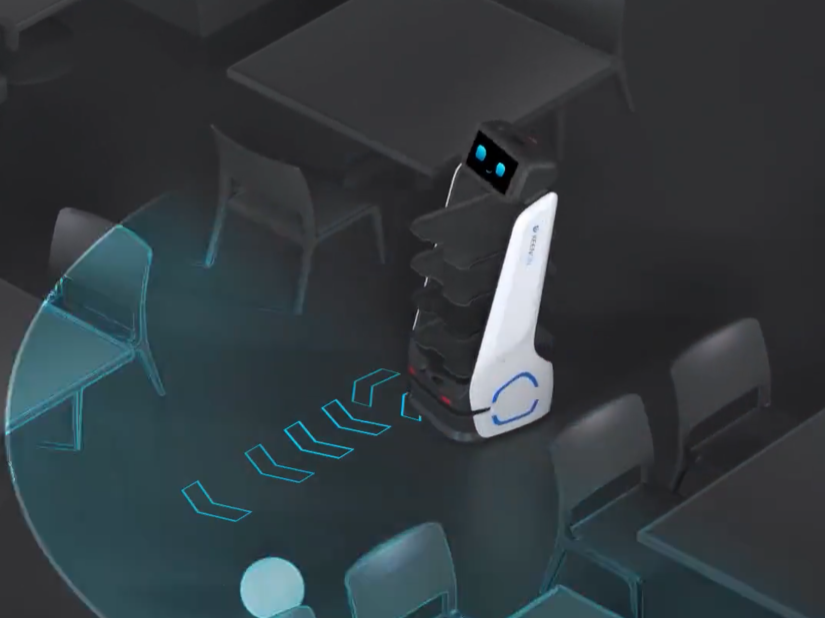

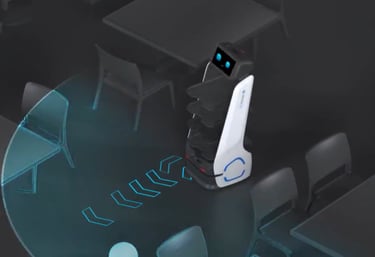

Powered by advanced LiDAR + V-SLAM navigation, it moves safely through complex environments without floor markers, offering smooth, reliable service that reduces staff workload and enhances the guest experience.
Ideal for: Restaurants, cafés, hotels, and other dining environments,
High-capacity, autonomous for efficiency and reliability

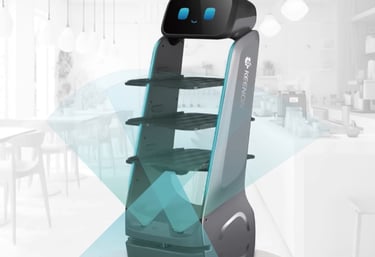

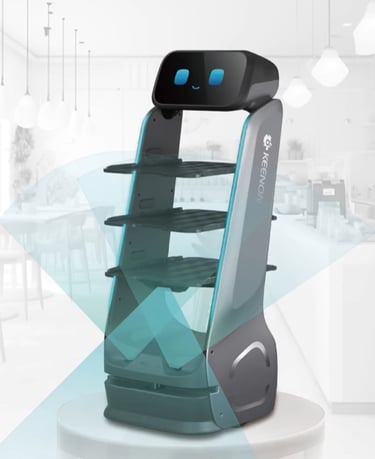

Advanced Safety & Obstacle Avoidance Equipped with stereo-vision sensors and 3D environmental perception, the T9 Pro detects people, furniture, and low-level obstacles in real time. A dedicated anti-drop sensor prevents falls at steps or floor edges, ensuring safe operation even in complex layouts.
DINERBOT T9 Pro Feature Highlight

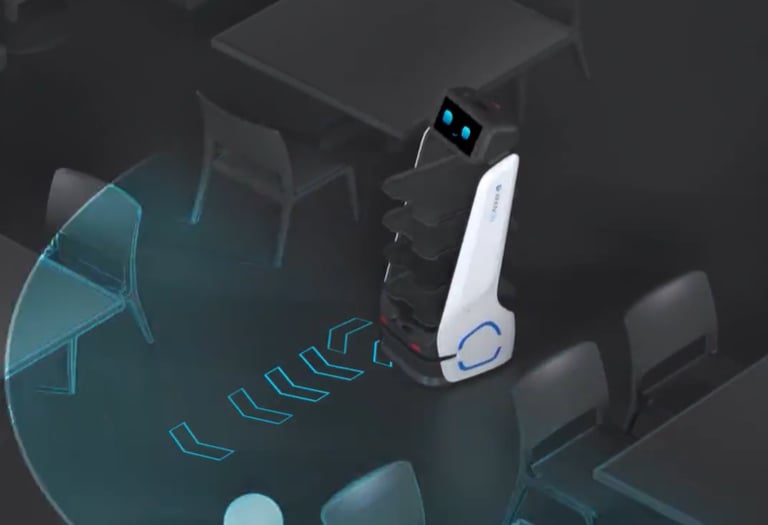

Reliable Positioning & Continuous Performance Constant spatial data collection ensures high-accuracy navigation, even in dynamic environments with changing layouts or lighting.
The T9 Pro operates confidently during long shifts, maintaining consistent performance day after day.
Smart Self-Pickup & Delivery System Each tray includes radar sensors that detect when items are placed or removed. Guests are guided by voice prompts, lighting cues, and on-screen reminders, allowing effortless self-pickup.
The robot automatically proceeds to its next delivery for smooth, continuous service.

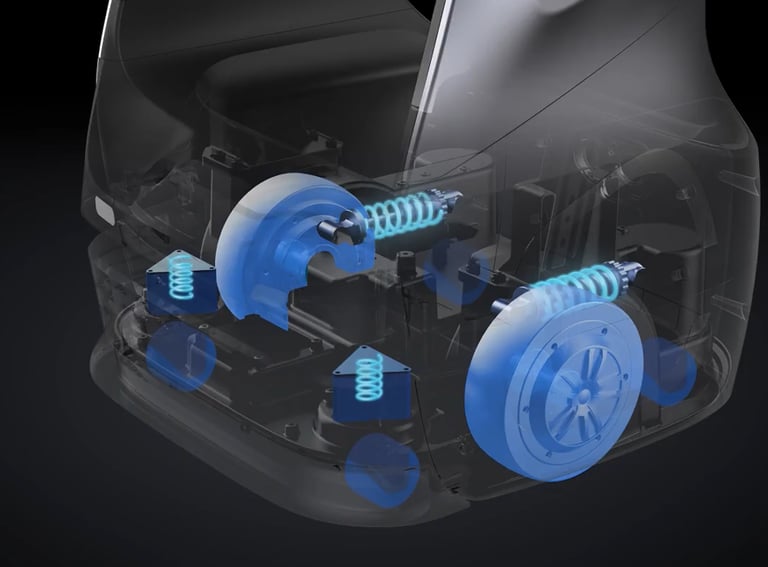

Strong, Stable & Spill-Resistant Chassis Built with a die-cast aluminum frame and independent vehicle-grade suspension, the T9 Pro glides smoothly over small bumps and slopes. A refined PID control system keeps acceleration, braking, and turning steady—preventing spillage and maintaining quiet, stable motion.

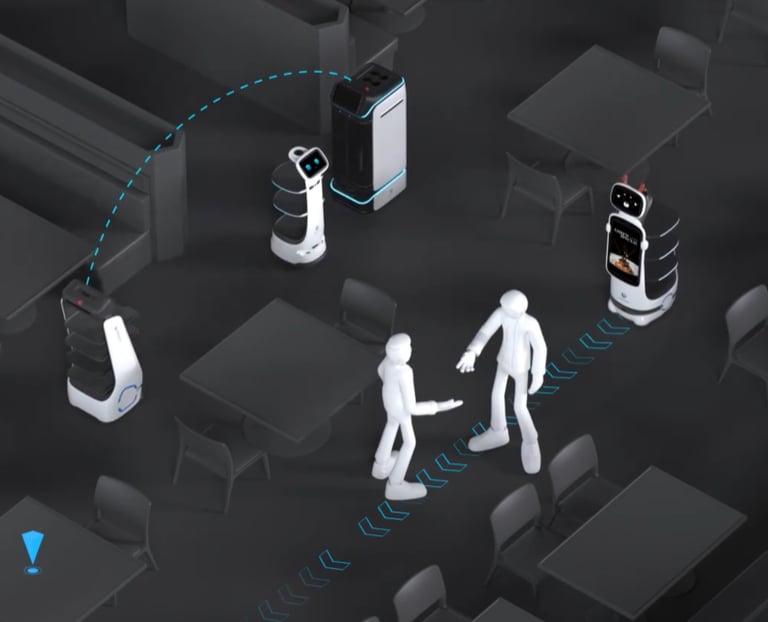

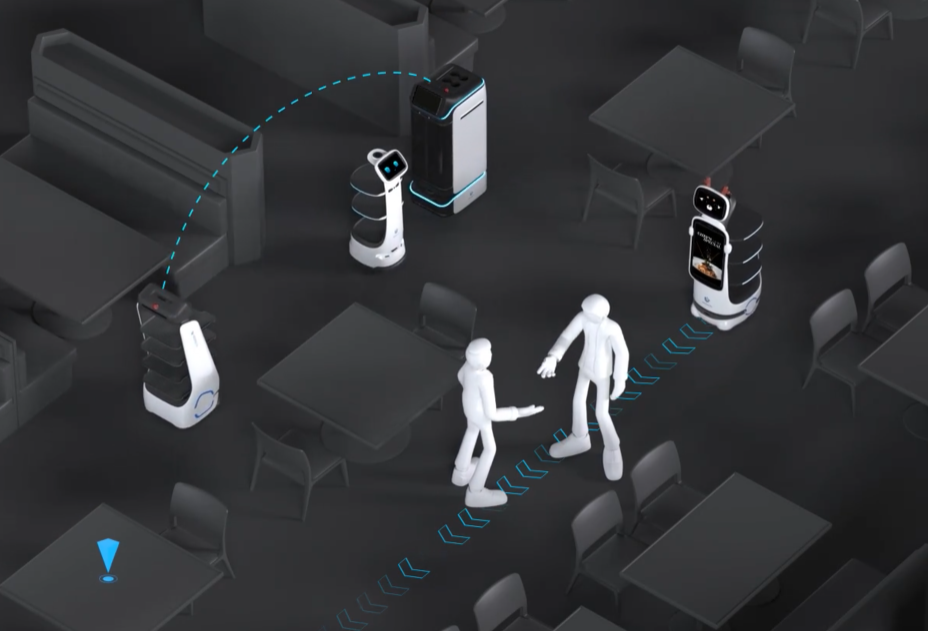

AI Navigation & Multi-Robot Coordination Keenon’s patented AI algorithms optimize route planning, scheduling, and collaboration among multiple robots. Several T9 Pros can work together seamlessly without congestion, maximizing throughput in busy venues.
Seamless Installation & Smart Mapping The T9 Pro uses V-SLAM visual navigation for quick, accurate setup and mapping. It recognizes natural ceiling and wall features to build precise spatial maps—no markers or QR codes needed—keeping your venue clean and installation effortless.

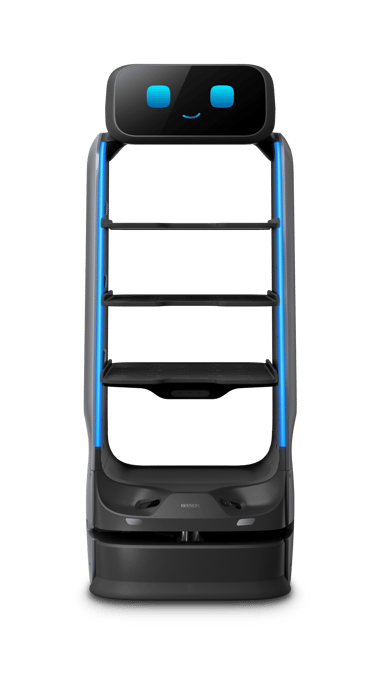

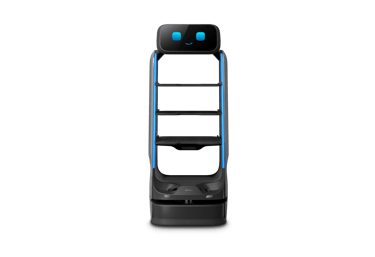

DINERBOT T9 Pro Specifications
Dimensions
50.0 x 52.7 x 126.6 cm
Weight*
45.2 kg
Layer Size
48.6 x 38.4 cm
(for the upper three layers)
Total Load Capacity
40 kg
Minimum Passage Width
70cm
Max. Moving Speed
0.8 m/s
Touch Screen Size
11.6" (1920 x 1080)
Slope Angle
5°
Battery Life**
Up to 15 h
Charging Time***
4 h
*Charging pile is not included.
**All battery claims depend on many factors; actual results will vary. Battery has limited recharge cycles and may eventually need to be replaced. Battery life and charge cycles vary by use and settings.
***The charging time stated refers to the duration required for charging from 15% to 100% battery capacity, using either a recharger or charging pile, with the robot powered on. Do not attempt to charge a wet Robot.
